NUX NDO-5 Verdugo Series ACE OF TONE Dual Overdrive

NUX NDO-5 Verdugo Series ACE OF TONE Dual Overdrive

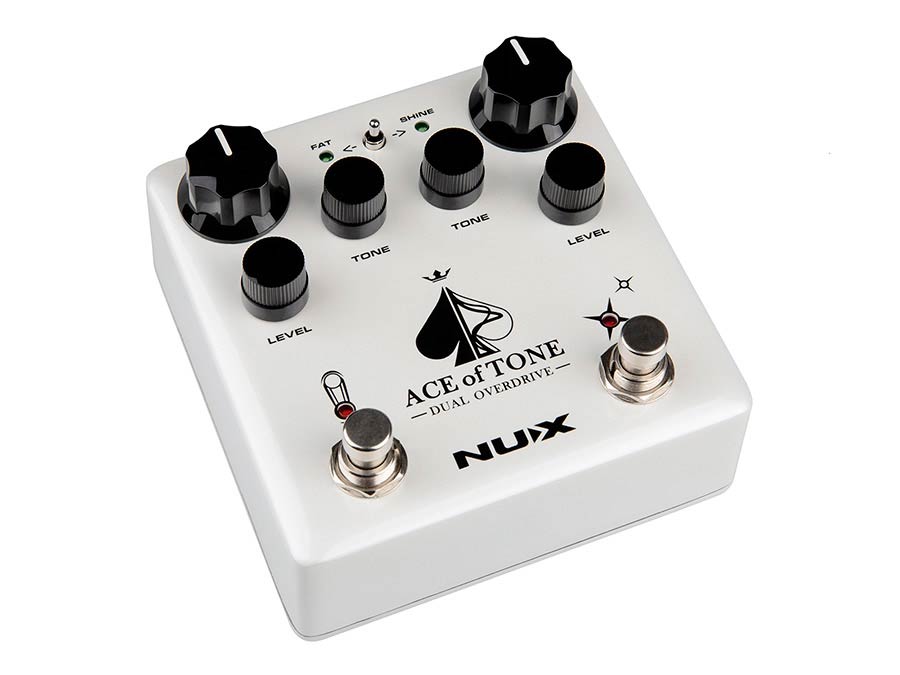

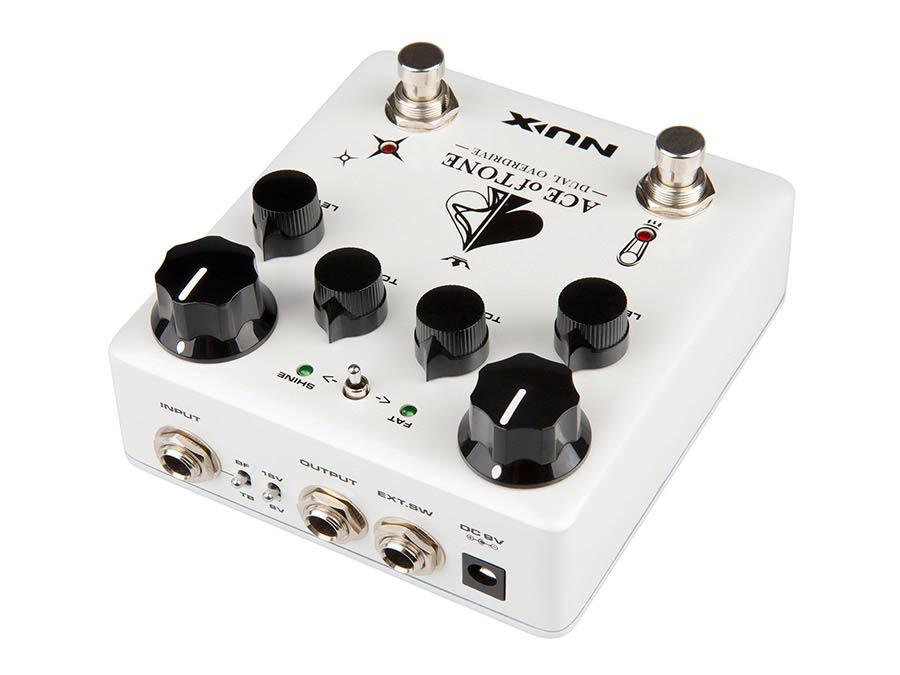

• Ace of Tone is a dual overdrive pedal, containing both a Tubeman MKII and a Morning Star.
• In the left corner we have: the Tubeman with FAT mode.
• The Tubeman offers much more clarity and gain than a classic Tubescreamer,
• In the right corner we have: the Morning Star with SHINE mode.
• The Morning Star is based on the legendary Bluesbreaker circuit: very transparent, with low gain overdrive.
• Adjust the order of the effects: Morning Star going into Tubeman or vice versa.

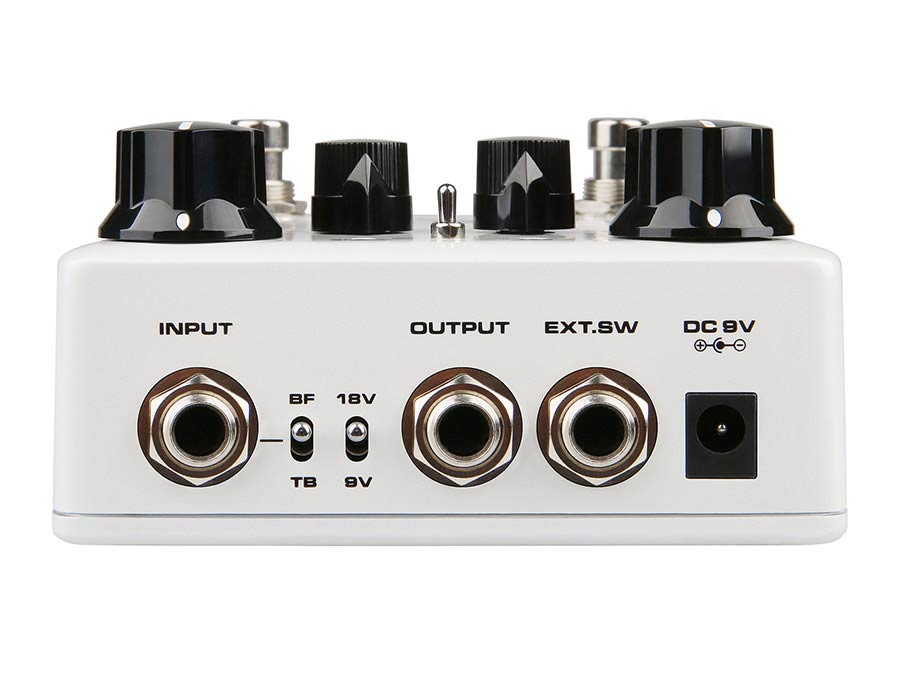

• Choose buffered bypass or true bypass with the BF / TB switch.
• Use the 9V/18V switch to internally double the voltage to 18V for a wider dynamic range.

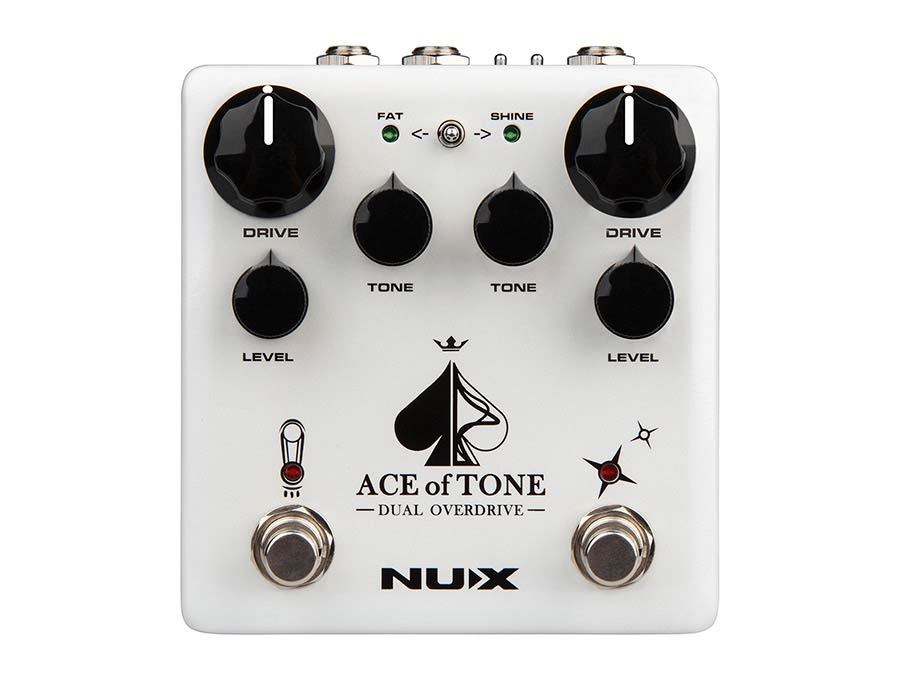

• Controls and Features: Left side (Tubeman)
• DRIVE knob: controls the gain of the Tubeman circuit.
• TONE knob: controls the amount of treble of the Tubeman circuit.
• LEVEL button: Regulates the volume of the Tubeman circuit.
• Footswitch: turns the Tubeman circuit on/off. Press and hold the button for 1 second to switch the FAT mode on/off.
• FAT indicator: when FAT mode is on, the indicator will light up.
• Right Hand Side (Morning Star)
• DRIVE button: controls the gain of the Morning Star circuit.
• TONE knob: controls the amount of treble of the Morning Star circuit.
• LEVEL knob: adjusts the volume of the Morning Star circuit.
• Footswitch: switches the Morning Star circuit on/off. Press and hold for 1 second to turn on/off the SHINE mode.
• SHINE indicator: lights up when SHINE mode is on.
• Effect order switch: Morning Star first, then Tubeman or Tubeman first, then Morning Star.
• Power supply: 9V DC (Niet meegeleverd)
• Afmetingen: 105(L) X 115(W) X 58(H) mm
• Gewicht: 440g
